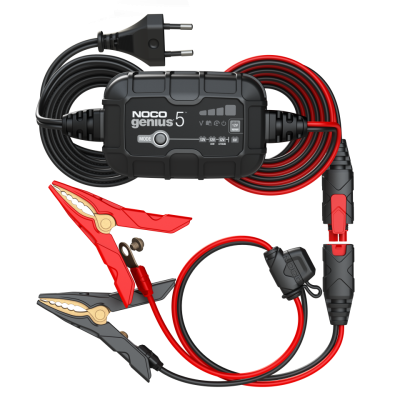

Noco Genius 5 - 6V/12V Battery Charger

GENIUS 5 | 5-Amp Battery Charger, Battery Maintainer, and Battery Desulfator

The all-new GENIUS5 is an advanced, processor-controlled battery charger designed for batteries from 10Ah to 120Ah. The GENIUS5 is a 6-volt and 12-volt battery charger, battery maintainer, and battery desulfator rated at 5-amp for lead-acid automotive, marine, and deep-cycle batteries, including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries. Battery clamps are included as well as integrated eyelets. The eyelet connectors can be used by removing the battery clamp with a hex key. The battery charger is protected against reversed polarity and is spark-proof. It is also protected against overcharging, open-circuits, short-circuits and overheating. Ultimately a completely automatic charger that will safely take care of all your batteries needs.

The battery charger has 6 modes:

• 12V Lithium 14,2V for lithium batteries
• 12V COLD/AGM 14,8V for 12V lead-acid batteries
• 6V NORM 7,25V for 6V lead-acid batteries
• 12V NORM 14,5V for 12V lead-acid batteries
• FORCE MODE for manually charging batteries all the way down to 0-volts
• Stand-by where the battery charger awaits further instructions from the mode button

Summary

• Fully automatic battery charger
• Compatible with all 6V and 12V batteries, including lithium batteries.
• Designed for continued usage
• Auto-Memory returns the last charge mode when connected after a disconnection.
• Charge batteries from 1-volt and manually charge batteries with Force-mode all the way down to 0 volts.
• Charging current of 5 Amps
• Not suitable for 24V Batteries

Specifications

Working Voltage AC: 110–240VAC, 50–60Hz

Charging Voltage: 14,5V, 14,8V AGM, 14,2V Lithium and 7,25V for 6V batteries

Min. Battery voltage: 2.0V

Output Power: 75W

Voltage ripples: <4%

Ambient temperature: -20°C tot +40°C

Compatible Batteries: All 6V and 12V types lead-acid batteries (WET, MF, Ca/Ca and GEL), 12V AGM and 12V Lithium/ LiFePO4 batteries

Battery Capacity: 120Ah

Dimensions: 117 x 74 x 48 mm (L x W x H)

Housing Protection: IP65

Weight: 0,68 kg

Thermal Compensation: yes

Warranty: 3 year Hassle-Free

See the videos below for more information

• How to change modes on your NOCO GENIUS5
• How to use force mode on your NOCO GENIUS5
